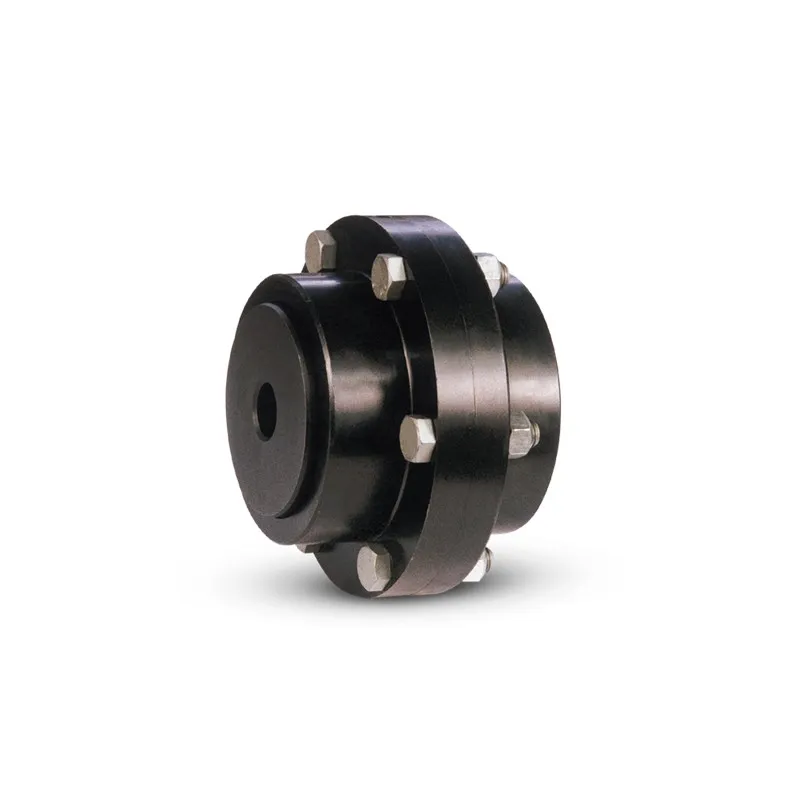

Elign Geared Coupling

Coupling

Simple
Compact
Lightweight

Industries: Water and waste recycling, Cement industry, Chemical industry, Mining Industry, Food and beverage industry, Material handling industry, Plastic industry, Power industry, Pulp and paper industry, Rubber industry, Steel industry, Sugar industry

Categories: Couplings

Download catalogue Document bank Contact us today!

Description

Elign Gear Coupling consists of hubs with multi crowned teeth at flank, tip and teeth. It is a simple, compact and light unit for transmitting the same power when compared to the couplings of similar capacity available in the market.

Type	Size	Torque Rating	Kw/rpm
ED – With double housing	ED 130 to ED 110000	1300 to 1100000 N.m.	0.136 to 115.19 kW per RPM
ER – With one end rigid	ER 130 to ER 45000	1300 to 450000 N.m	0.136 to 47.123 kW as per RPM
ET – With spacer	ET 130 to ET 110000	1300 to 1100000 N.m.	0.136 to 115.19 kW per RPM
EV – For vertical application	EV 130 to EV 17400	1300 to 174000 N.m.	0.136 to 18.221 kW per RPM
ES – With single housing	ES 1600 to ES 17400	16000 to 174000 N.m.	1.675 to 18.221 kW per RPM

Additional information

Applications

Agitator, Air Preheater, Apron Conveyors, Apron Feeders, Ball mills, Belt Conveyors, Brid, Bucket, Bucket Elevator, Bulk Materials Handling, Calendar Drive, Cane Carrier, Cane Chopper, Cane Shredders, Central Drive, Classifier, Coal Mill, Coiler / Uncoiler, Conveyor Drive, Conveyors, Crusher, Crystallize, Diffuser, Digesters, Elevator Drives, Extruder Drive, Feeder, Feeder Table, Furnace tilt drives, Heavy Duty Rolling Mill, High Capacity Wind Turbine, Hot & Cold Rolling Mills, Hot Sizing Mill, Kernel Expellers, Levellers, Main Mill Drive, Mini Hydro Plant, Mixer, Mixer Drive, Nodulizer, Pinion Stand (Rolling Mill), PQF drive of Seamless Tube, Pressure Feeders, Rake Elevator / Elevator, Raw Mill, Ring Granulator, Role Screen, Roll Stand, Rotary Dryer, Rotary Kiln, Rotary Wagon Tippler, Screw Conveyors, Screw Press, Separator Drive, Shears, Slew, Slurry pump drives, Small & Medium Wind Turbines, Stacker Reclaimer Drive – Slew Drive, Tension / Pay off Rel, Traveling Grate, Tube Drawing Mill, Twin Screw, Vertical Coal Pulverizer, Vertical Extruder Drive, Vertical Roller Mill

Industries

Cement industry, Chemical Industry, Material Handling Industry, Palm Oil Industry, Paper Industry, Plastic Industry, Power industry, Rubber Industry, Steel Industry, Sugar industry
