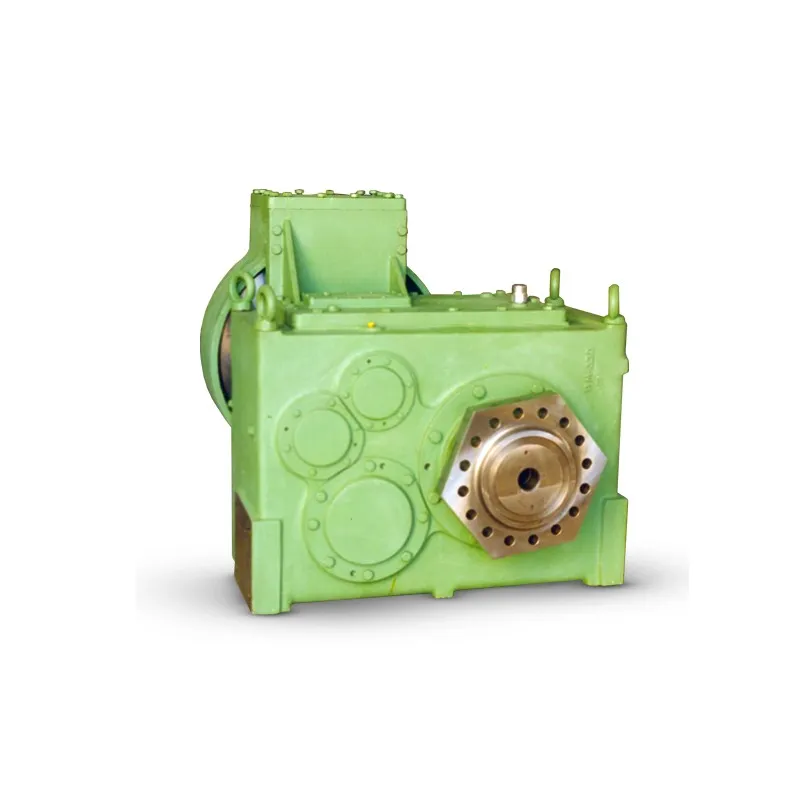

Medium Wind Turbine Gearbox – SDNK 1400
Wind turbine gearboxes
- Hexagonal flanged low speed shaft
- FG 320 material
- Gear tooth and bearings are splash lubricated
Description
Radicon through Elecon manufactures highly demanding wind turbine gearboxes under technical collaboration with Wind Master of Belgium. Structure of the SDNK 1400 wind mill gearbox not only supports the power generator and disc brake, but also the wind turbine blades through a hexagonal flanged low speed shaft. The wind mill gearbox case and adopter are specially developed for this purpose out FG 320 material. This wind turbine gearbox’s internals are carburized, hardened, ground and profile corrected for speed increasing application. Gear tooth and bearings are splash lubricated.
The wind mill gearbox is supported on the Nacelle trough sturdy brackets and operates at a height of 40 meters off ground. Hydraulic cylinder shaft maneuvering the blade angle is also accommodated in the gearbox casing.
| Features | Helical speed increaser gear box suitable upto 100 kW wind mill |
| Advantages | Specially designed speed increaser for wind mills |
| Technical Specifications | Suitable upto 350 kw power generation and ratio upto 40:1 |
| Product Application | Wind Mill for Wind Power Generation |
| Range | Wind Mill for Wind Power Generation |
Additional information
| Type & Size | SDNK 1400 |
| Motor Power | 300 kW |
| Generator Shaft Speed | 1512 rpm |
| Ratios | 35.1487:1 |
| Weight | 4 000 kg approx. |
| Applications | High Capacity Wind Turbine, Small & Medium Wind Turbines, Wind Mill |
| Industries | Power industry, Windmill |
